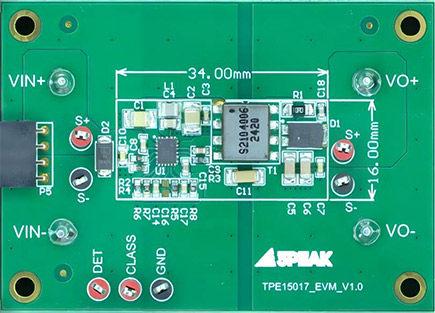

EVM_TPE15017_001_V0
TPE15017 PoE PD Solution with PSR or SSR Active Clamp Flyback Converter
-
Overview
-
What’s Included
-
Development Resources
Overview
The TPE15017 is an integrated IEEE 802.3af compatible PoE Powered Device with integrated PD interface and fly-back power converter. It is targeted for small size 13W isolated PoE applications.
The PD interface has all the functions of IEEE 802.3af, including detection, classification, inrush current, operation current limit, 100V hotswap MOSFET.
TPE15017 fly-back converter is specifically designed for active clamp primary-side regulate (PSR) fly-back topology, which supports small size and high efficiency.
TPE15017 can also be set in secondary-side regulate (SSR) active clamped fly-back topology, which can get best regulation through opto-coupler from secondary side.
The TPE15017 can support a front-end solution for PoE-PD application with minimum external components. It is available in QFN-19 (3mmX4mm) package. The TPE15017 is available in 19-pin 3mmx4mm QFN package.
What’s Included
-
标题1
内容1
内容1
内容1
-
标题2
内容2
内容2
内容2
Development Resources
-
All
-
Documentation
-
Documentation
- Name
- Type
- Language
- Date
-
User GuideEnglish01/16/2025
